Sale Off
Dyneema Loop

SKU:DL2011-04-BK

$7.50
2x40mm2x70mm2x150mm2.5x50mm2.5x80mm2.5x160mm3x60mm3x100mm3x200mm4x80mm4x125mm4x250mm5x100mm5x150mm5x300mm
Black
2x40mm2x70mm2x150mm2.5x50mm2.5x80mm2.5x160mm3x60mm3x100mm3x200mm4x80mm4x125mm4x250mm5x100mm5x150mm5x300mm
Black
17
19
14
19
8
0
0
25
33
33
20
15
0
0
0

Thread through anywhere: Alternative for shackles in some applications

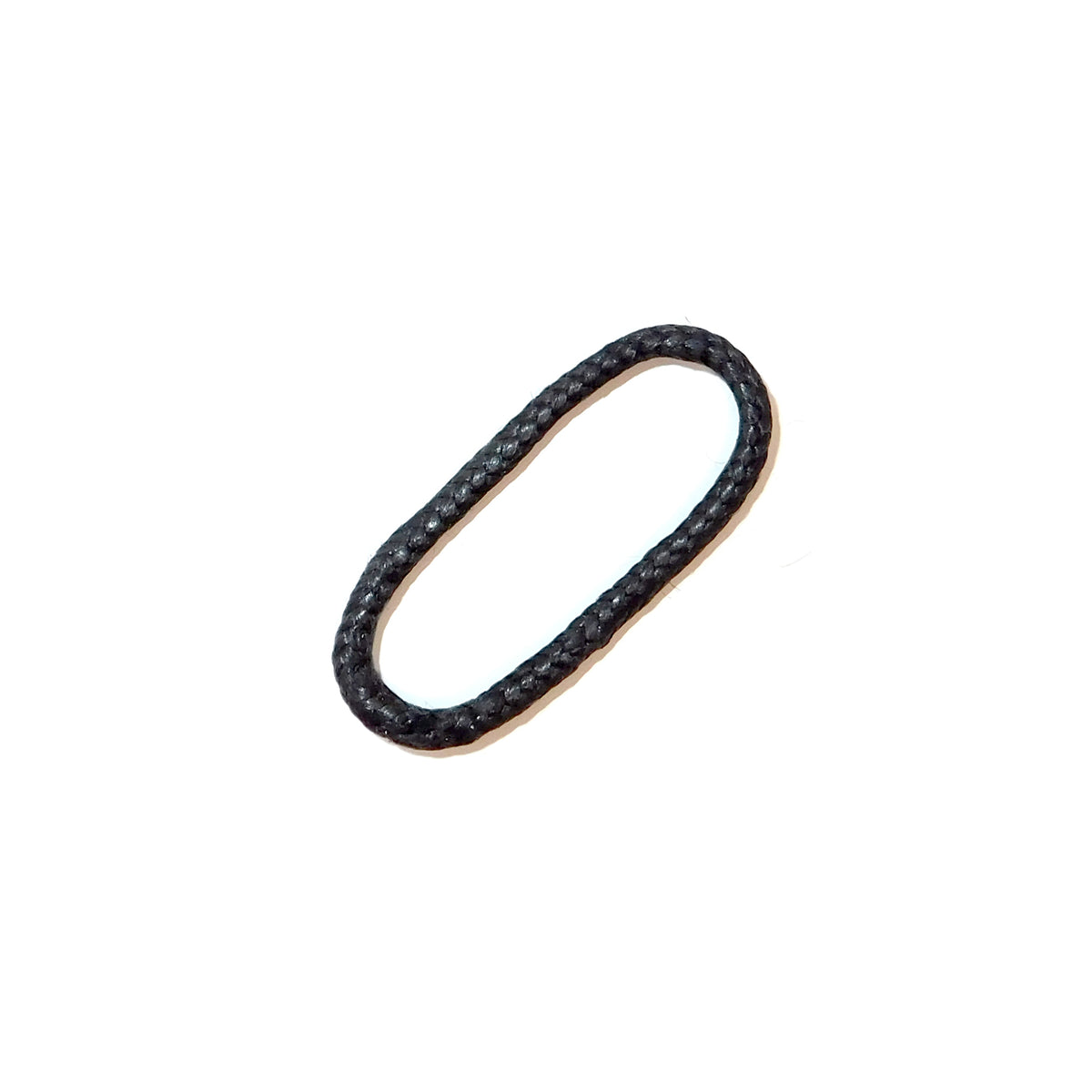

Spliced & Sewn Loops

Hand sewn and spliced with UHMWPE rope, these loops are as strong as cable loop of the equivalent diameter because the loops are made of high strength UHMWPE fibre. These are soft and light and it’s super easy to pass them through places with dimensional restrictions.

2mm

2.5mm

3mm

4mm

5mm

  • 2mm=620kg|2.5mm=1,040kg|3mm=1,150kg|4mm=1,940kg|5mm=2,740kg (Actual lab tested breaking strength)

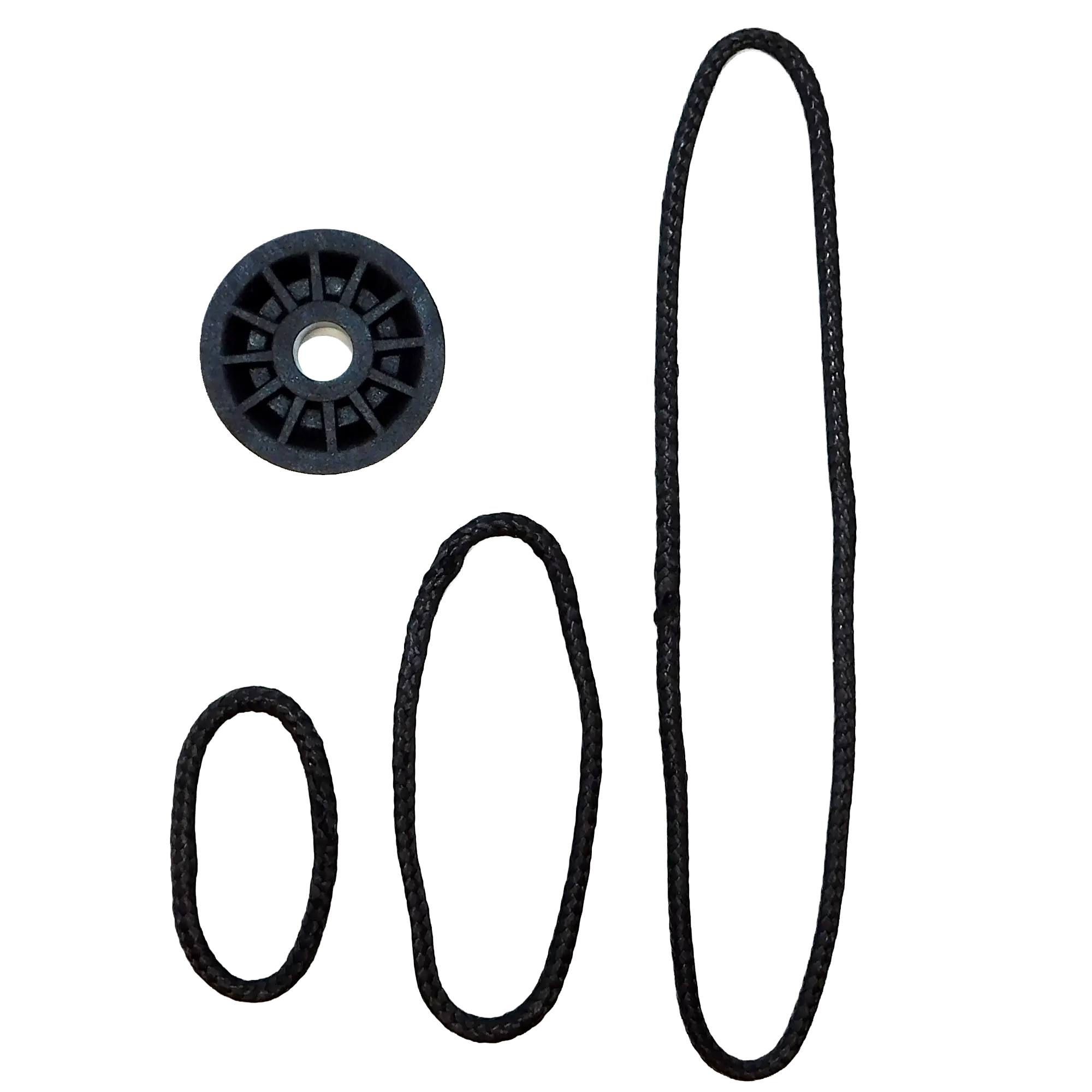

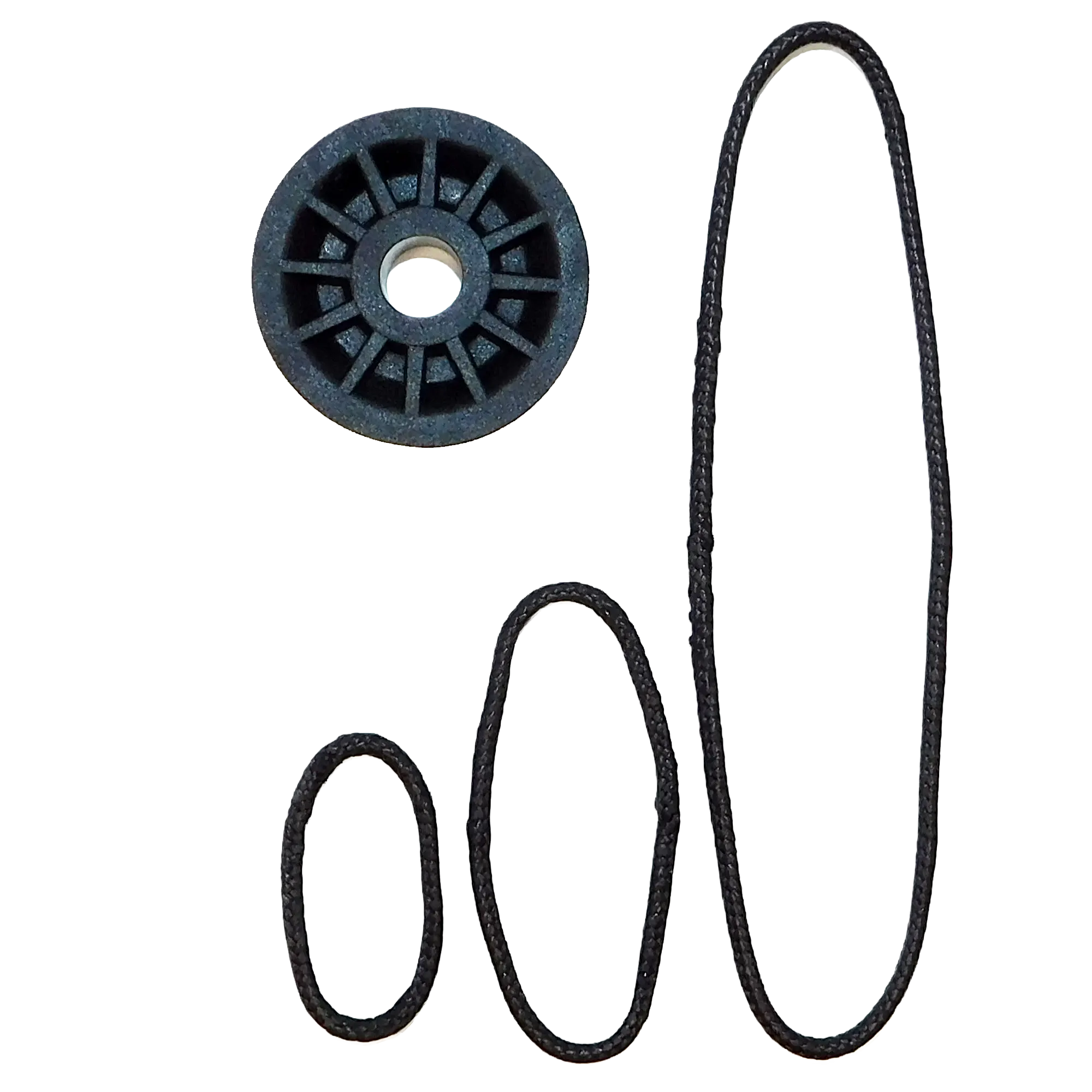

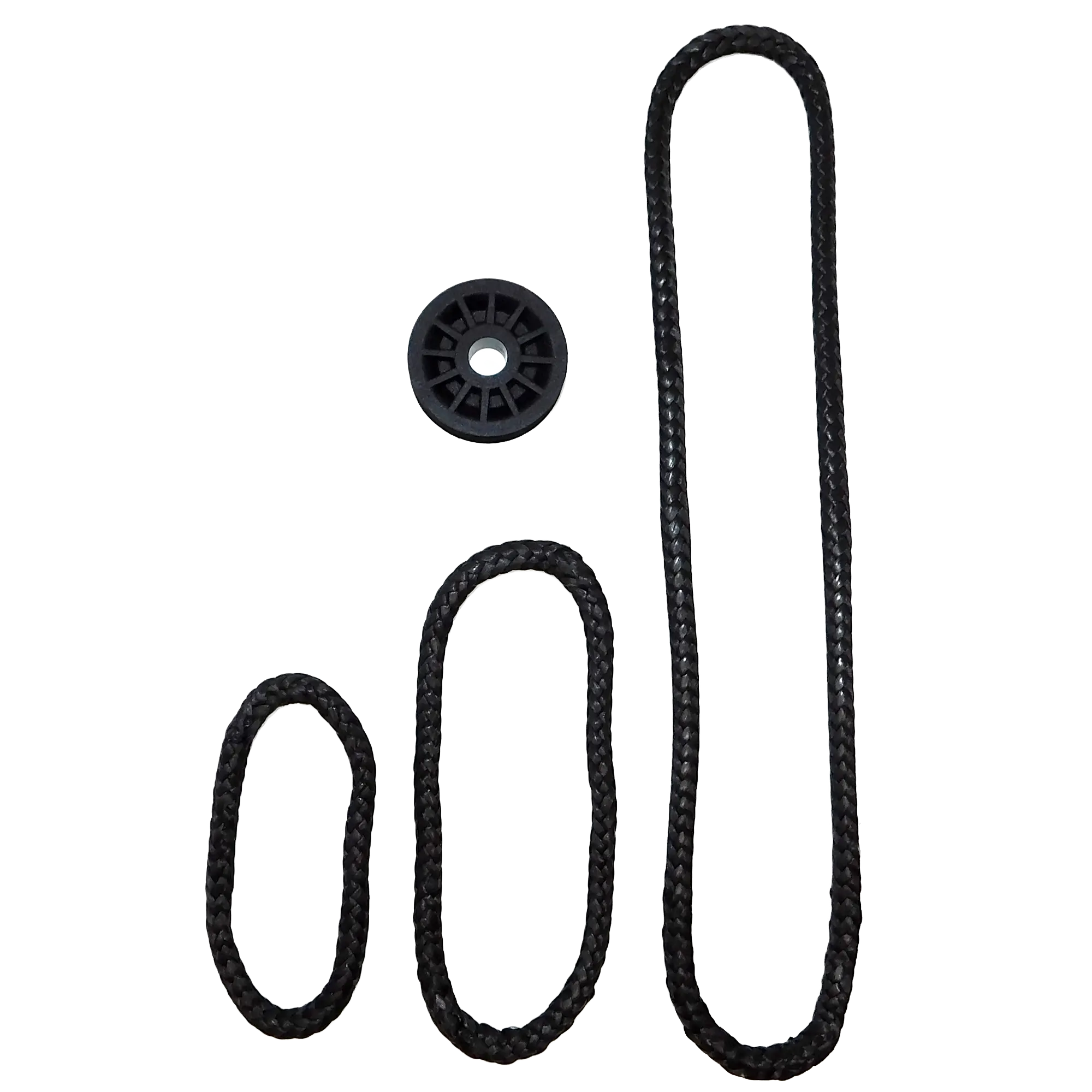

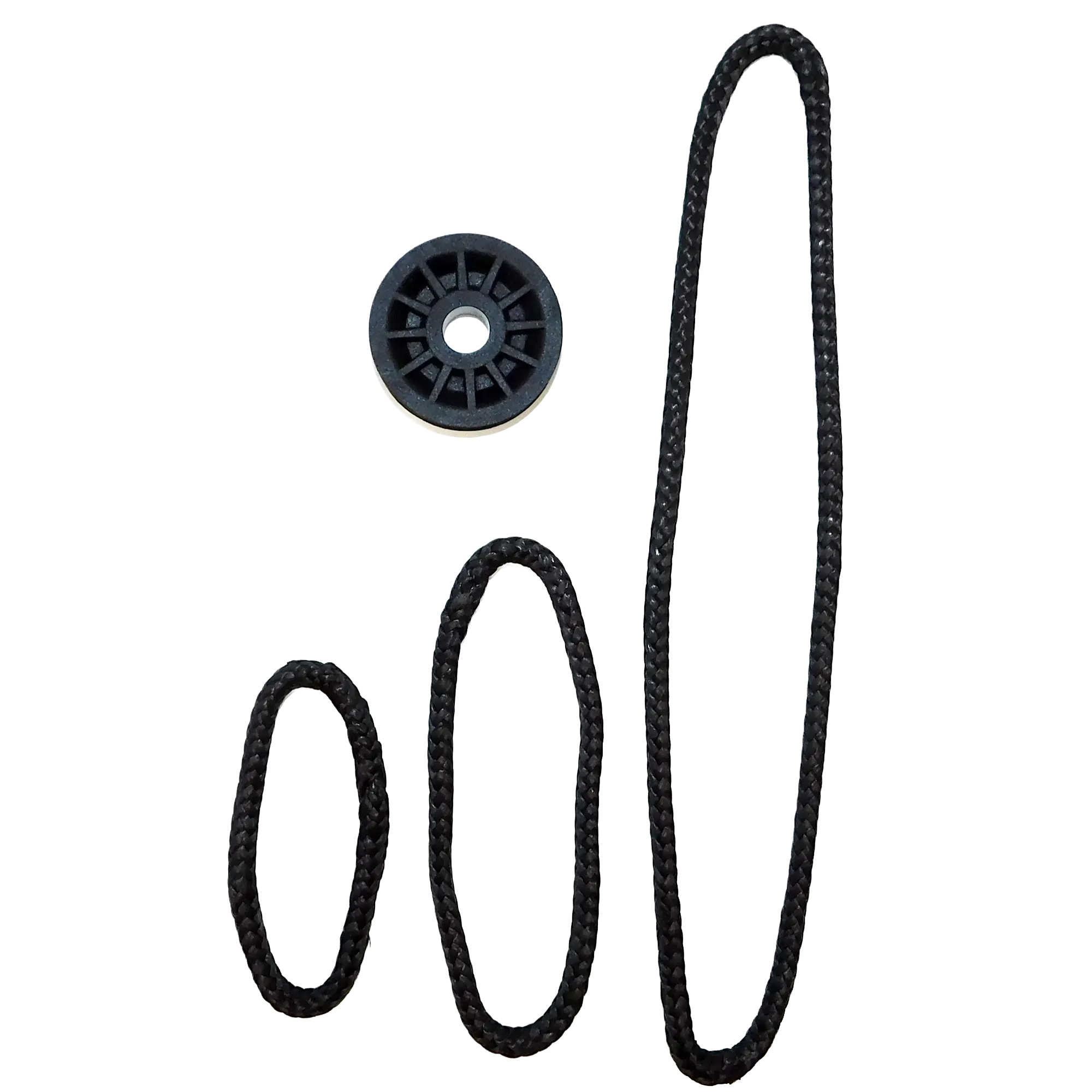

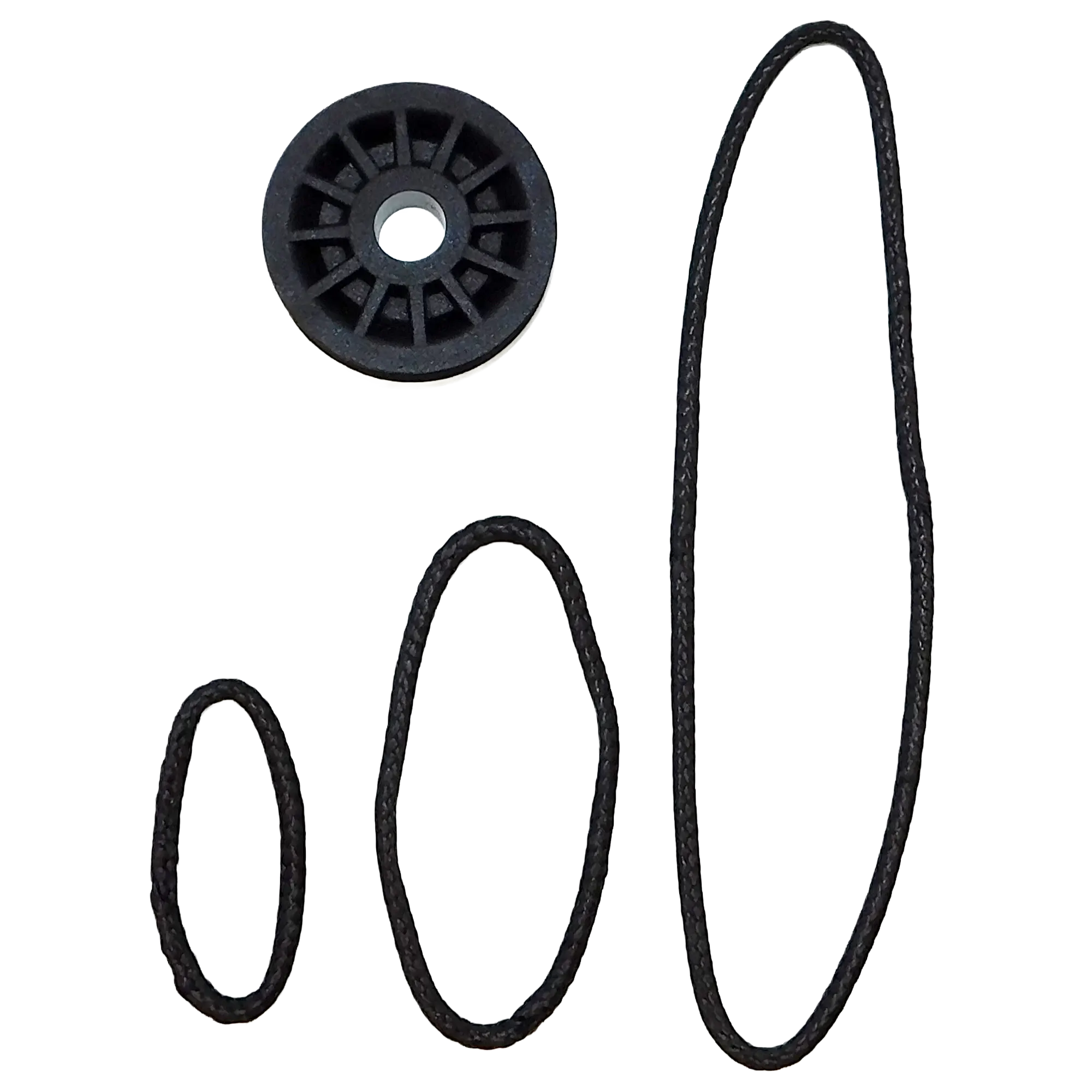

The sizes listed are the material rope diameter x inside dimensions. Given Length is the inside length when pulled flat with radius equal to the loop rope diameter. Note that this differs from the diameter when the product is in a circular shape. A 45mm sheave is captured in the photo for size comparison, but the dyneema loops will not come with sheaves.

size / variant option2mm2.5mm3mm4mm5mm
Breaking Strength620kg1040kg1150kg1940kg2740kg
Material Rope Size2mm2.5mm3mm4mm5mm
D, Diameter3.5mm4mm5mm6.5mm7.5mm
F, Thickness2.7mm3mm4mm5mm5.5mm
L, Loop Size40 / 70 / 150mm50 / 80 / 160mm60 / 100 / 200mm80 / 125 / 250mm100 / 150 / 300mm
size / variant option2mm2.5mm3mm4mm5mm
Breaking Strength1366lbs2292lbs2535lbs4276lbs6040lbs
Material Rope Size5/64"3/32"1/8"5/32"3/16"
D, Diameter9/64"5/32"3/16"1/4"19/64"
F, Thickness7/64"1/8"5/32"3/16"7/32"
L, Loop Size1.57 / 2.76 / 5.91"1.97 / 3.15 / 6.30"2.36 / 3.94 / 7.87"3.15 / 4.92 / 9.,84"3.94 / 5.91 / 11.81"

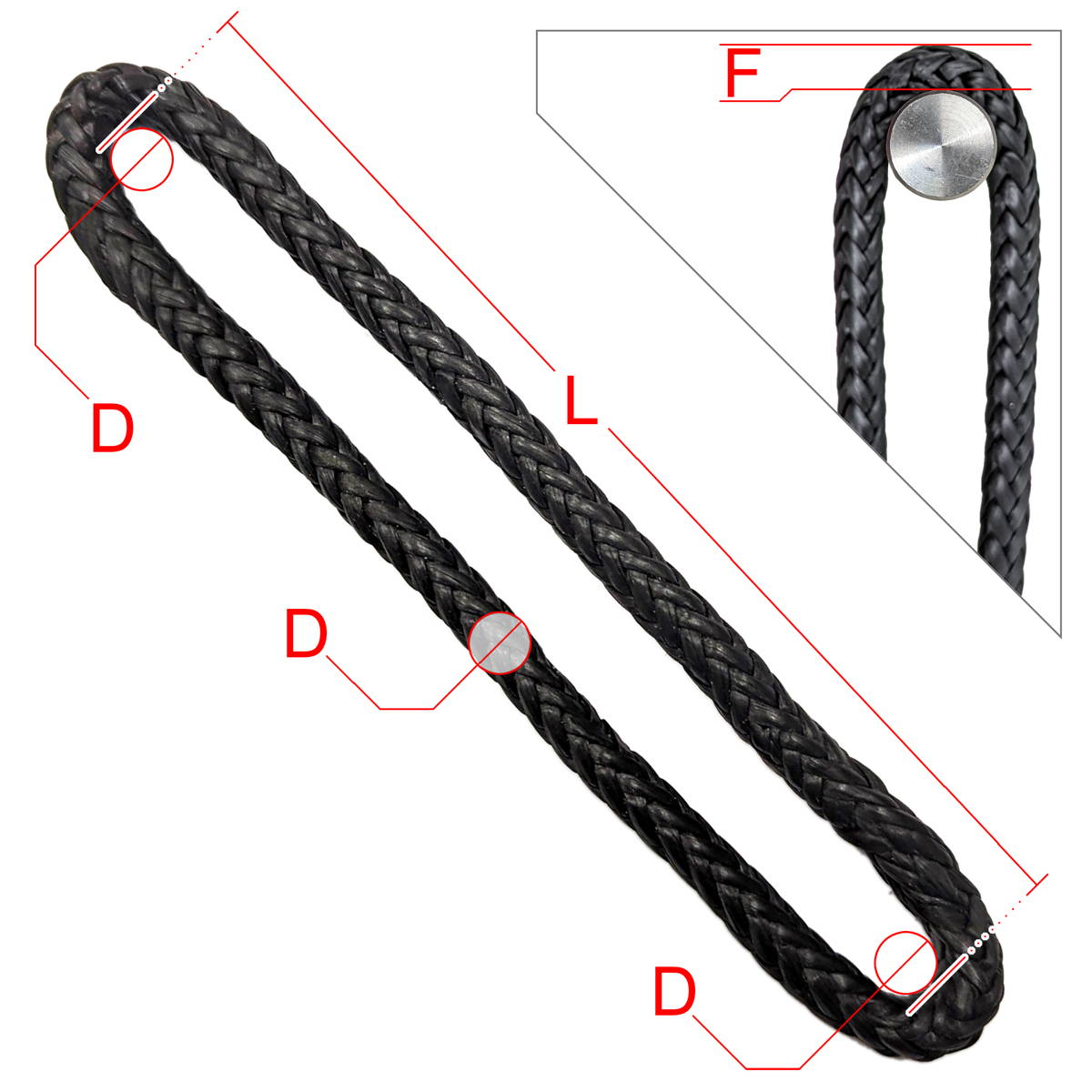

  • F: Flattened Rope Thickness

    The thickness of material rope while being loaded. Flattened soft shackles may be able to go through the narrow slit such as the webbing slot.

  • L: Internal Flat Length

    The internal length of the loop while being tensioned from the both ends. Our product size is shown in this value, NOT diameter.

  • Recommended Max. Working Load

    We recommend to use our soft shackles within 20% to 50% of the breaking strength. The actual max. working load differs depending on the usage.

Features

  • UHMWPE Fiber

  • Sizes available (please refer to the table)


  • Available in Black color only

  • Extremely strong: UV stabilized and abrasion resistant UHMWPE used
