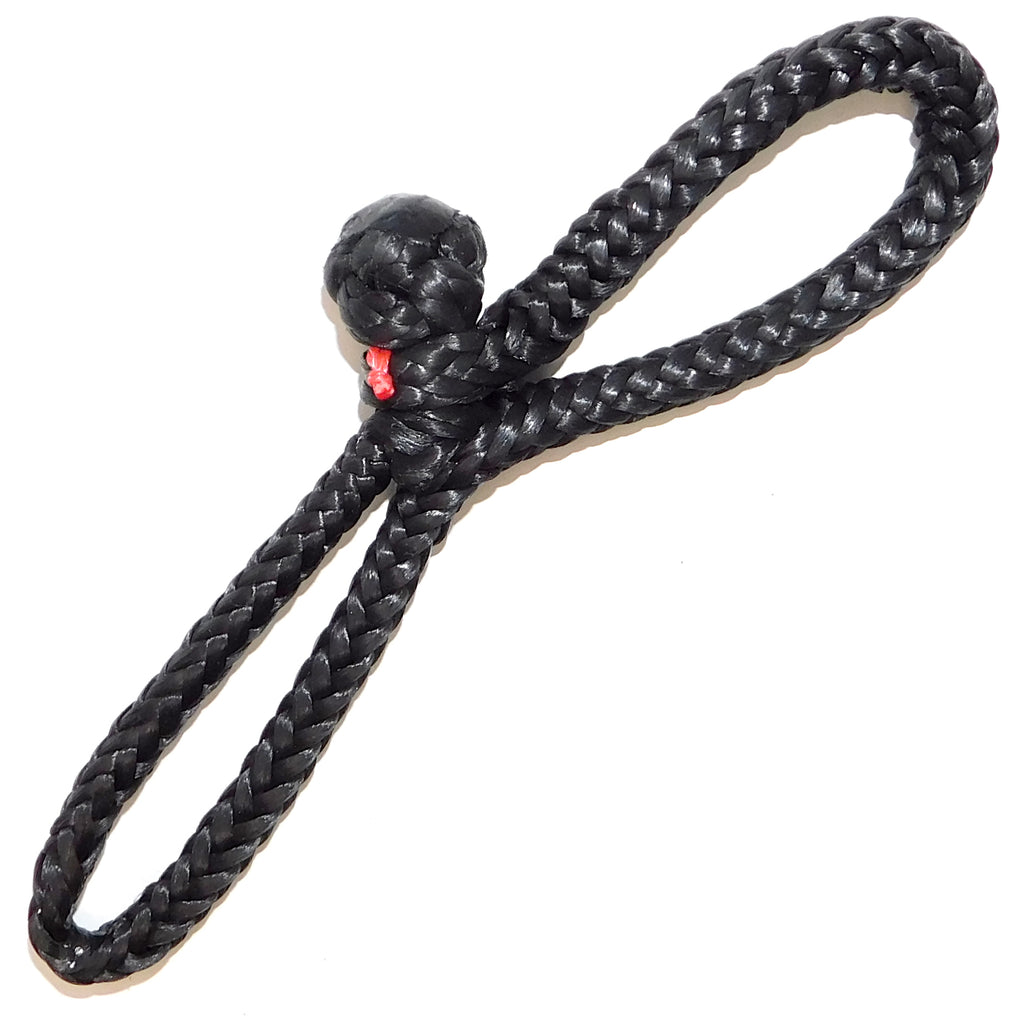

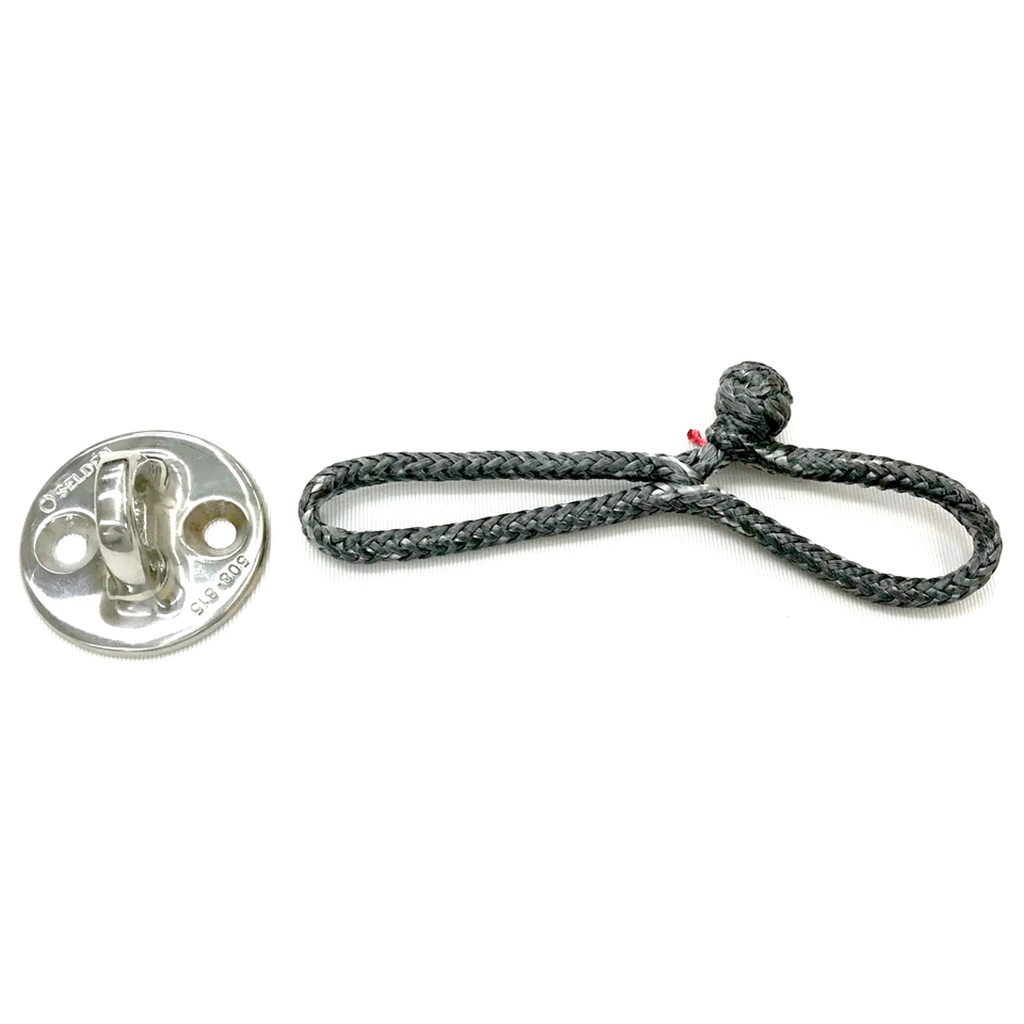

Soft Shackles that you often open can be troublesome since you can easily lose them. These "anchored" soft shackles allow you to loop the shackles onto something so that even when the soft shackles are opened they will remain secured and won't fall off.


About the same price as stainless steel but with more advantages

  • Soft & safer than metal shackles: No damage to deck-side, other equipment or people

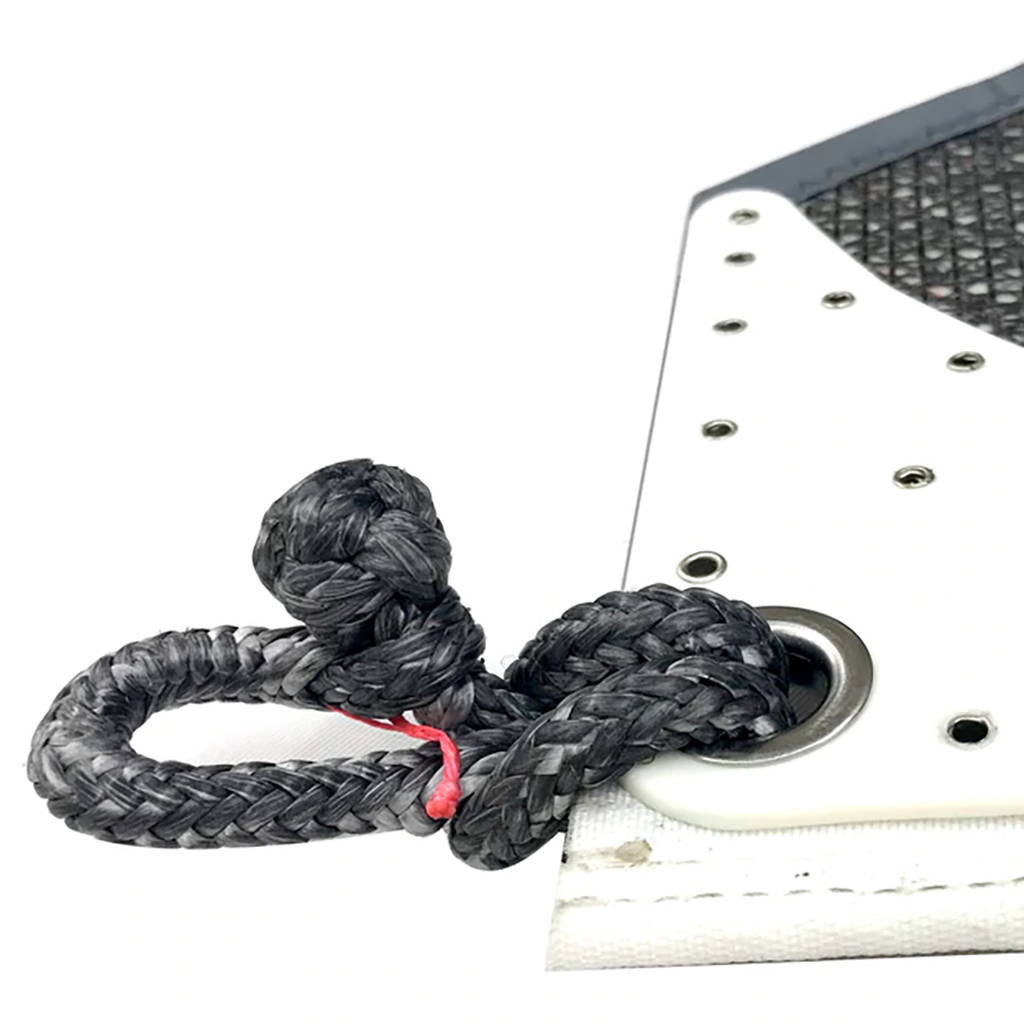

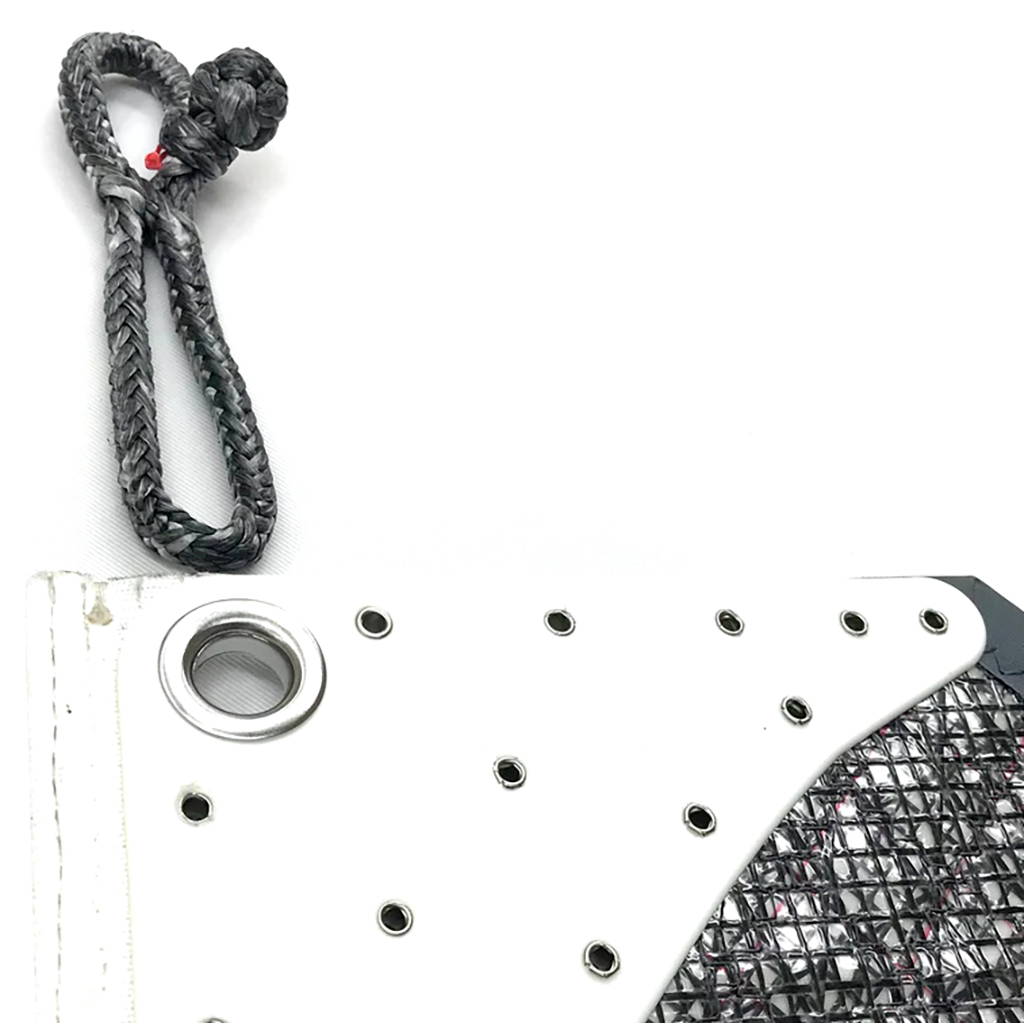

  • Can be installed in narrow places where metal shackles cannot pass through

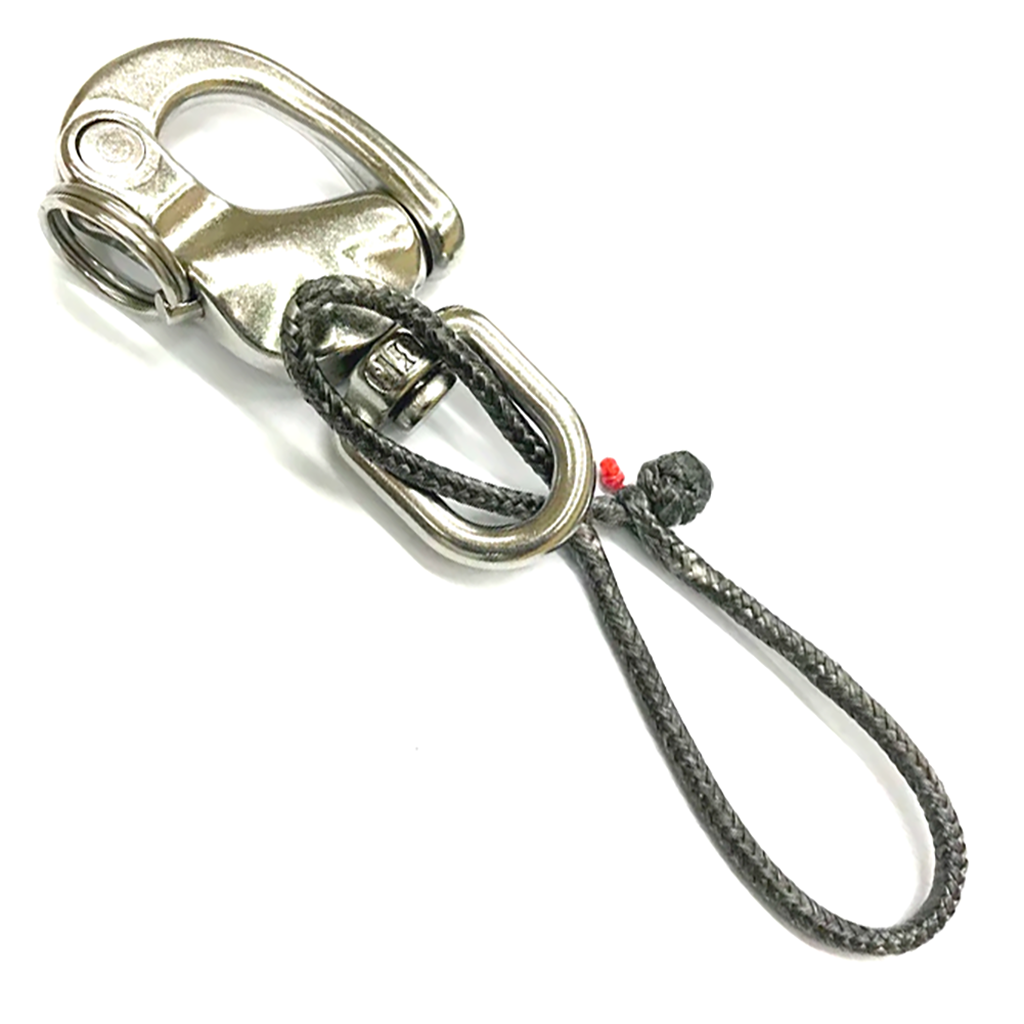

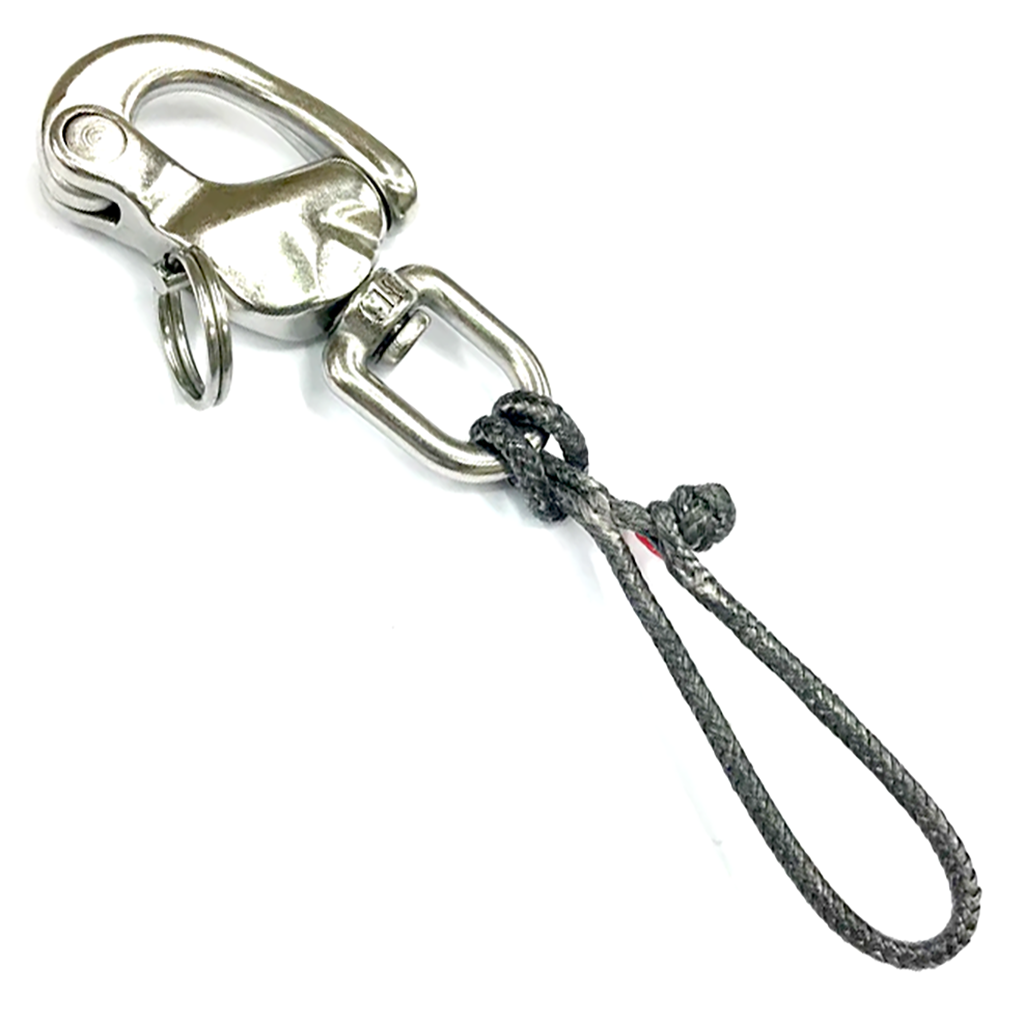

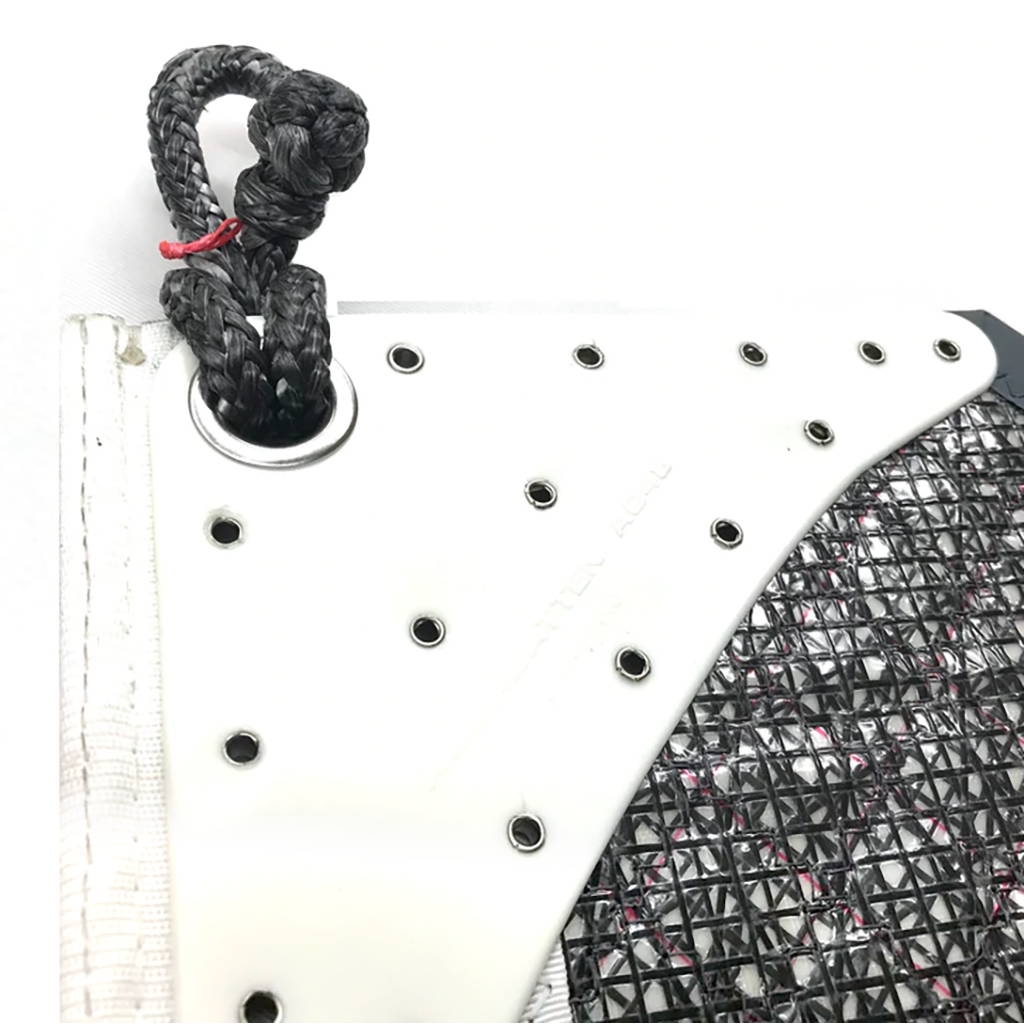

  • Ideal for connecting metal shackles & often opened shackles such as headboard & padeye shackles

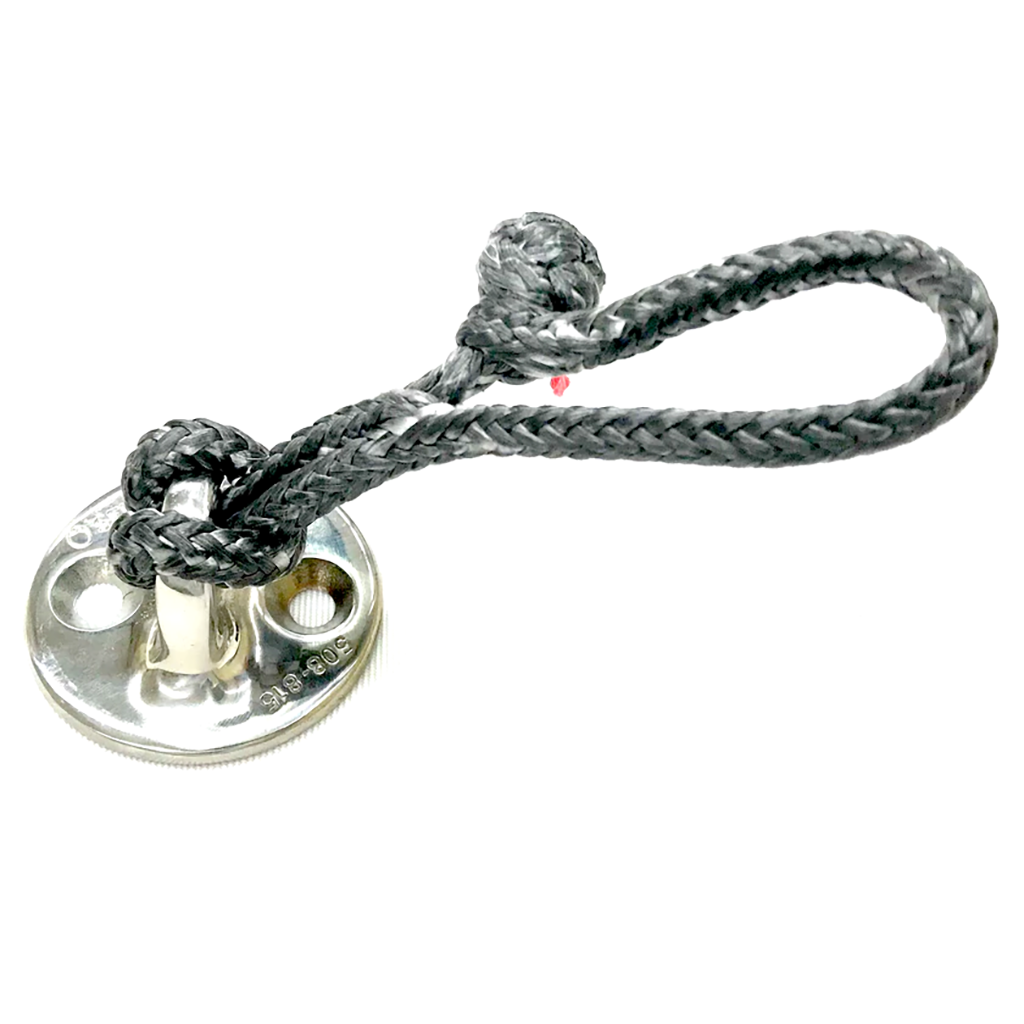

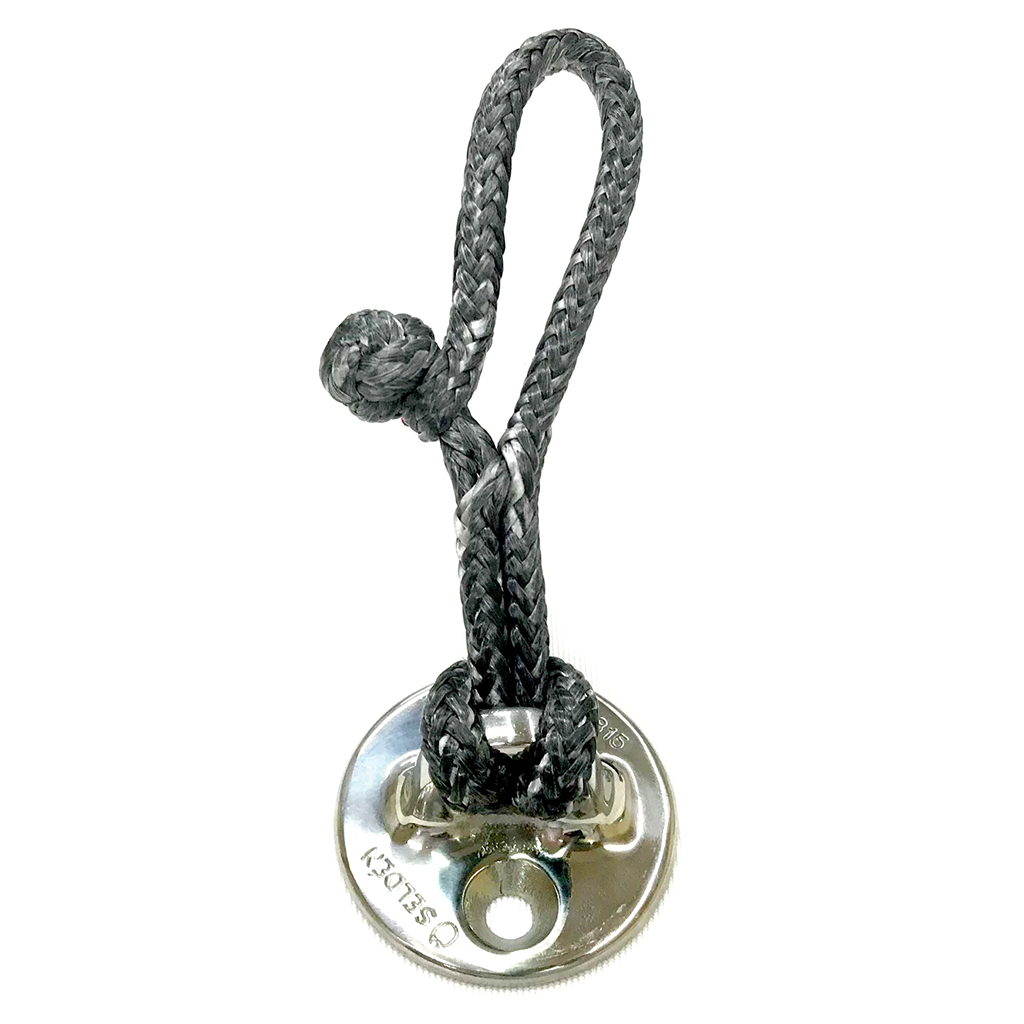

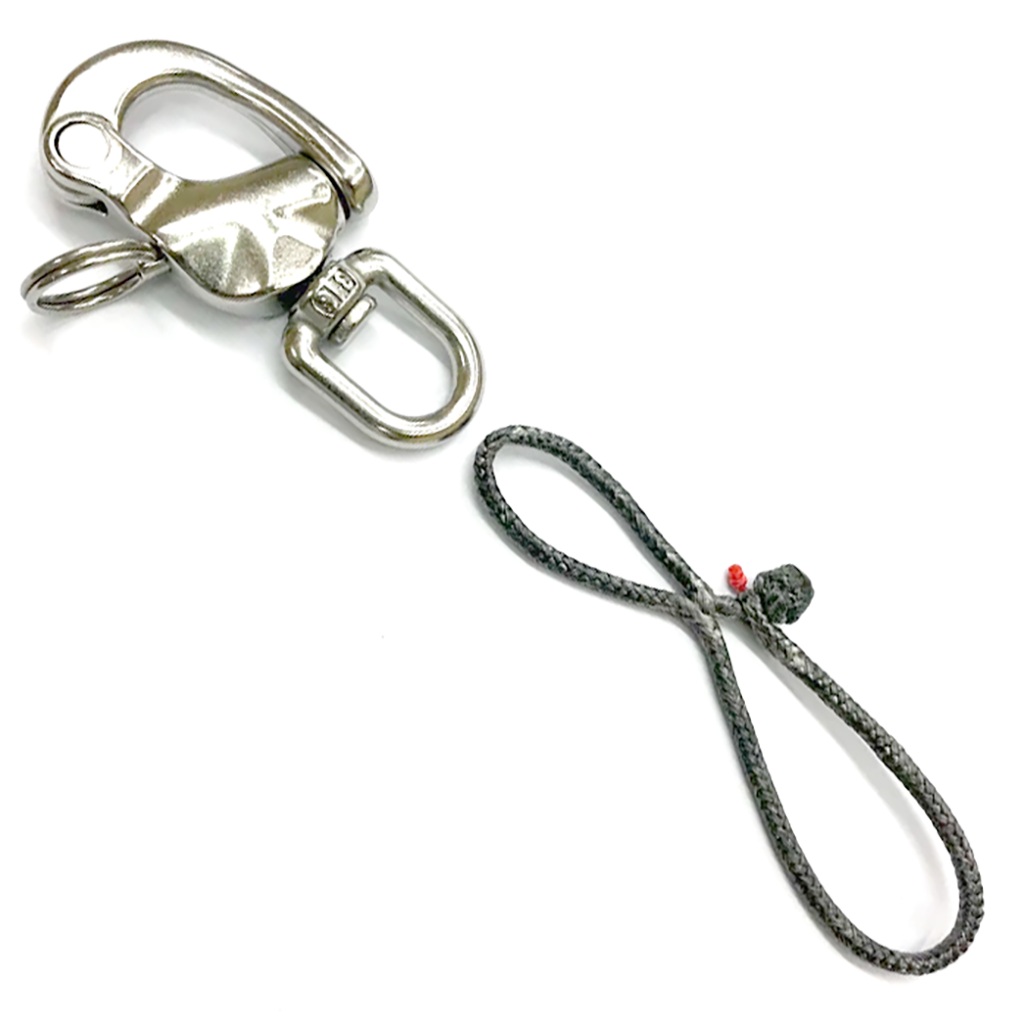

  • Easy to mount anchor (loop) with a cow hitch
  • No tools required to open shackles
  • Soft shackles can be opened and closed freely even while tied with anchor
  • Very lightweight: 4-6 times lighter than equivalent stainless steel (They float!)
  • No fiddling with bits that can fall out.
  • Extremely strong. All Soft Shackles are made of high-quality and tested UHMWPE Ropes made in house on our own machines.

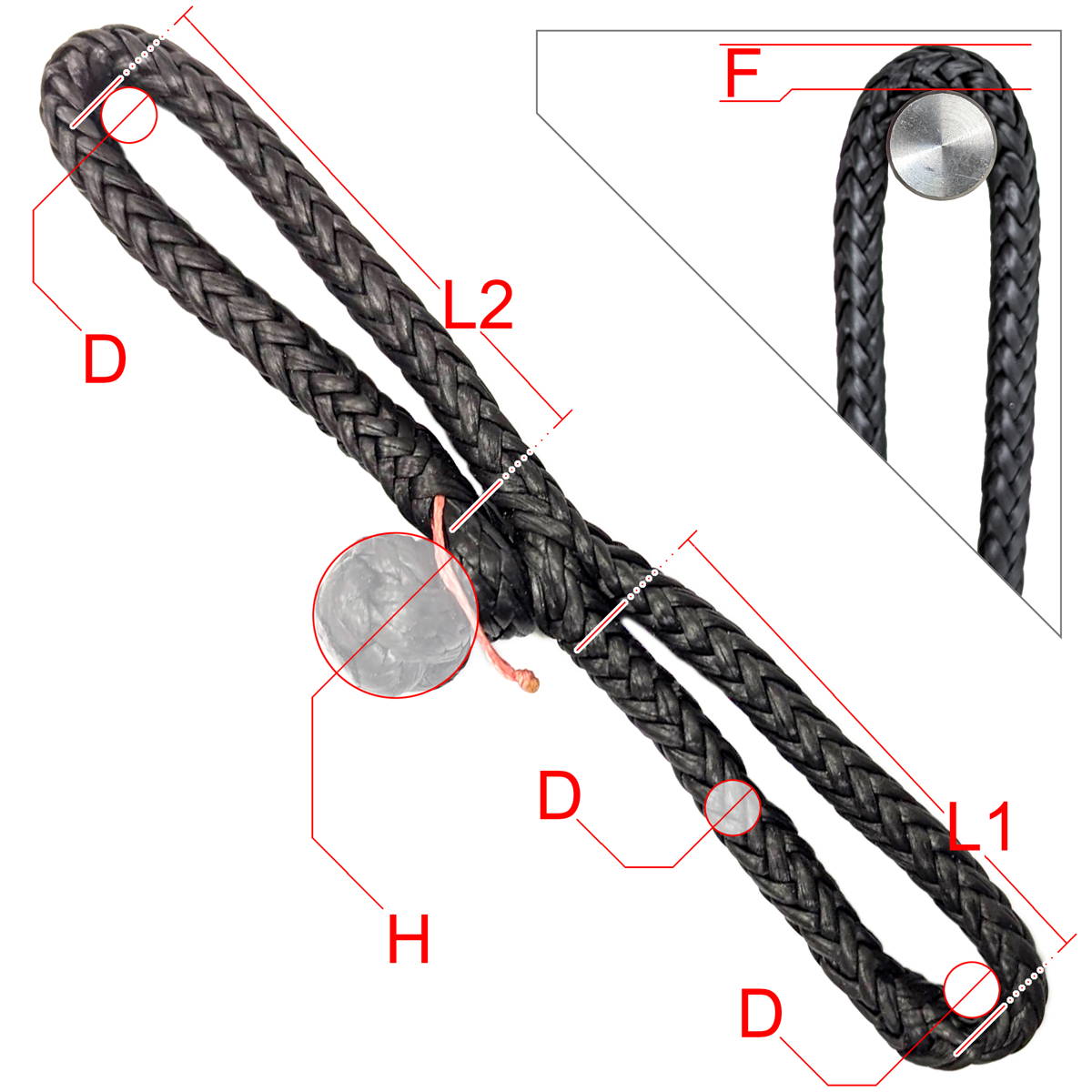

size / variant option2mm2.5mm3mm4mm5mm6mm
Breaking Strength451kg850kg1372kg1635kg2993kg4023kg
Material Rope Size2mm2.5mm3mm4mm5mm6mm
D, Diameter3.5mm4mm5mm6.5mm7.5mm9.5mm
F, Thickness2.7mm3mm4mm5mm5.5mm6.5mm
H, Diameter8mm9mm11mm15mm18mm22mm
L1, anchor size40mm50mm60mm70mm80mm90mm
L2, shackle size20 / 60mm20 / 60mm20 / 60mm30 / 60mm40 / 80mm40 / 80mm
size / variant option2mm2.5mm3mm4mm5mm6mm
Breaking Strength994lbs1875lbs3025lbs3605lbs6598lbs8870lbs
Material Rope Size5/64"3/32"1/8"5/32"3/16"1/4"
D, Diameter9/64"5/32"3/16"1/4"19/64"3/8"
F, Thickness7/64"1/8"5/32"3/16"7/32"1/4"
H, Diameter5/16"23/64"7/16"19/32"23/32"7/8"
L1, anchor size1.57"1.97"2.36"2.76"3.15"3.54"
L2, shackle size0.79 / 2.36"0.79 / 2.36"0.79 / 2.36"1.18 / 2.36"1.57 / 3.15"1.57 / 3.15"
  • F: Flattened Rope Thickness

    The thickness of material rope while being loaded. Flattened soft shackles may be able to go through the narrow slit such as the webbing slot.

  • L: Internal Flat Length

    The internal length of the loop while being tensioned from the both ends. Our product size is shown in this value, NOT diameter.

  • Recommended Max. Working Load

    We recommend to use our soft shackles within 20% to 50% of the breaking strength. The actual max. working load differs depending on the usage.
