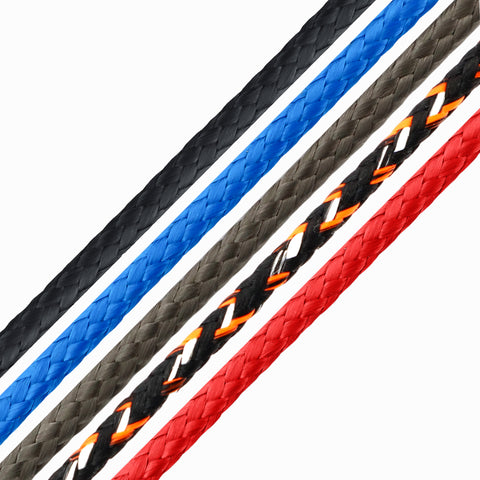

Splice! U12 is a Robship product manufactured in our own Philippine factory specially with UHMWPE. Strong! Easy to Splice! Solution Dyed Fiber for no color transfer and UV resistance.
Easy to Splice! This rope is specially braided so that there is room inside the rope to use Single braid splicing techniques. This makes it super easy to make nicely finished ends with stronger terminations quickly and with few tools.
Wear resistant with good grip, the coating and color will not wear off with this rope as it is a solution dyed fiber rather than white fiber coated later
U12 = UHMWPE Woven together using 12 Strands
Sold both by the roll and per meter. A 20% discount applied for 100m reels!
| Diameter (mm) | Roll Length (m) | Break Load (daN) | Weight (g/m) |
|---|---|---|---|
| 1.5 | 200 | 150 | 1.5 |
| 2.0 | 200 | 230 | 2 |
| 2.5 | 200 | 260 | 4 |
| 3.0 | 200 | 370 | 5 |
| 4.0 | 100 | 510 | 7.5 |
| 5.0 | 100 | 820 | 12.6 |
Breaking load comparison
| Diameter (mm) | Roll Length (m) | SPLICE! P12 | SPLICE! PU12 HYBRID | SPLICE! U12 |
|---|---|---|---|---|
| 1.5 | 200 | 60 daN | - | 150 daN |
| 2.0 | 200 | 90 daN | - | 230 daN |
| 2.3 | 200 | - | 170 daN | - |
| 2.5 | 200 | - | - | 260 daN |
| 3.0 | 200 | 160 daN | 200 daN | 370 daN |
| 4.0 | 100 | 300 daN | 430 daN | 510 daN |
| 5.0 | 100 | 380 daN | 560 daN | 820 daN |
Rope mascot
Eric, our full time designer's Mascot for Splice! U12
