Splice! P12
$0.13

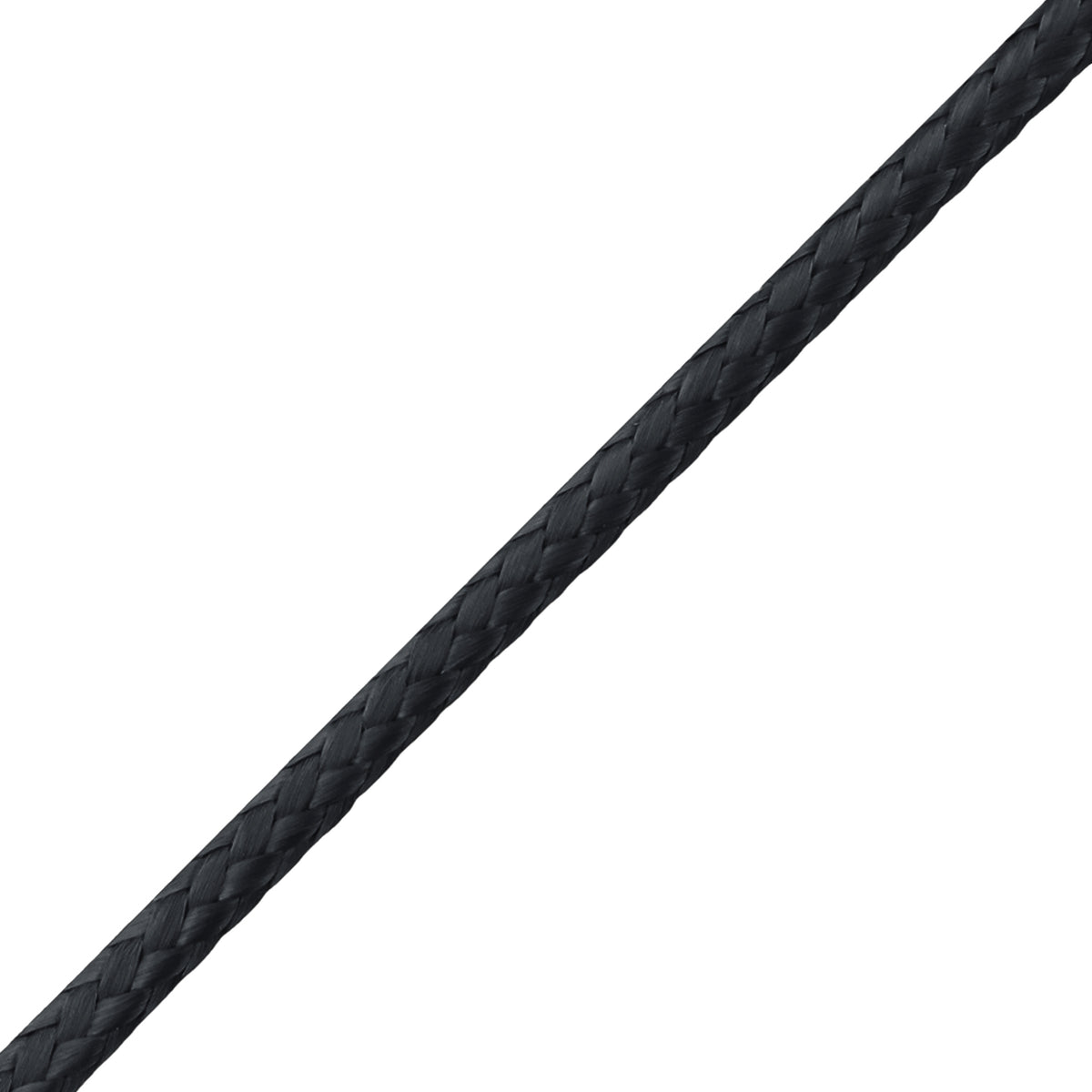

Splice! U12 is a Robship product manufactured in our own Philippine factory specially with UHMWPE. Strong! Easy to Splice! Solution Dyed Fiber for no color transfer and UV resistance.
Easy to Splice! This rope is specially braided so that there is room inside the rope to use Single braid splicing techniques. This makes it super easy to make nicely finished ends with stronger terminations quickly and with few tools.
Wear resistant with good grip, the coating and color will not wear off with this rope as it is a solution dyed fiber rather than white fiber coated later
U12 = UHMWPE Woven together using 12 Strands
Sold both by the roll and per meter. A 20% discount applied for 100m reels!
| Diameter (mm) | Roll Length (m) | Break Load (daN) | Weight (g/m) |
|---|---|---|---|
| 1.5 | 200 | 220 | 1.5 |
| 2.0 | 200 | 360 | 2 |
| 2.5 | 200 | 590 | 4 |
| 3.0 | 200 | 760 | 5 |
| 4.0 | 100 | 1000 | 7.5 |
| 5.0 | 100 | 1400 | 12.6 |
Breaking load comparison
| Diameter (mm) | Roll Length (m) | SPLICE! P12 | SPLICE! PU12 HYBRID | SPLICE! U12 |
|---|---|---|---|---|
| 1.5 | 200 | 65 daN | - | 220 daN |
| 2.0 | 200 | 120 daN | - | 360 daN |
| 2.3 | 200 | - | 215 daN | - |
| 2.5 | 200 | - | - | 590 daN |
| 3.0 | 200 | 205 daN | 240 daN | 760 daN |
| 4.0 | 100 | 510 daN | 660 daN | 1000 daN |
| 5.0 | 100 | 640 daN | 930 daN | 1400 daN |
Rope mascot
Eric, our full time designer's Mascot for Splice! U12
